3.0mm AWG9 Round Wire Forming Machine For Starter Armature Manufacturing WIND-AWF-R

(1) Application:

Low duty cars starter



(2) Advantages:

(3) Parameter:
Voltage: 380V
Presure: Min 0.5Mpa
Wire diameter 1.8mm to 3.4mm
Wire feeding length: 0~250mm
Efficiency: 2.3s/pc
Power: 500W
Weight: around 700KGS
Dimension: 1700mm*600mm*1650mm


(4) Configuration:

1. Mitsubishi PLC, WEINVEIW 10-inch touch screen.

2.Taiwan HIWIN linear guide and module, Delta servo motor line. Line length adjustment.

3. Taiwan Nicholas precision planetary reducer.

4. Taiwan AIRTAC pneumatic parts and solenoid valves.

Hairpin forming for starter armature is one of the armature manufacturing process and below information are required to check when you send inquiry

Below drawings are required and example for send quotation

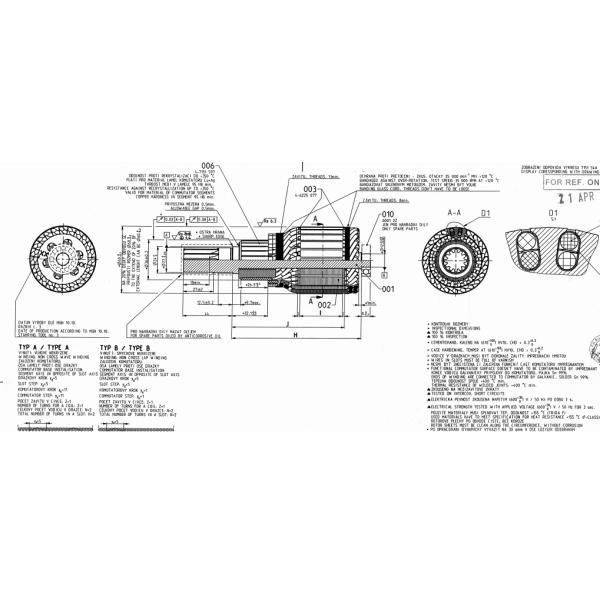

Armature assembly drawing

Armature part drawings




Please click below picture to view video

Shanghai Wind Automation Equipment Co.,Ltd supply motor automation solution for global motor manufacturers. Setted up in the year 2010 by Senior Engineer Mr.Wang who involve in electric motor filed since 1998. Through continuous innovation and participating in globalization, it has now developed into a large enterprise that integrates R&D, production and sales to provide motor solutions for customers worldwide.

Shanghai Wind Automation built a 3C business system

1.Customized Machinery

​   Provide armature,stator motor manufacturing mchinery,

   including stand along machine, fully-auto complete production line

​

2.Characteristic Component

  Supply the full range of motor components such as commutator, magnet, fan, motor cover,etc.

3.Comprehensive Service

   Provide motor project technical support and consulting

Centered on Shanghai, the company has formed four production bases in the Yangtze River Delta city group and supplied over 20 countries including USA, Mexico,Brazil, Argentina, Turkey,France,Germany,

Czech Republic,Romania,India, Bangladesh and So on.

Our objective is to provide turn-key motor manufacturing automation equipment with no limitation

as free as the Wind, reduce the labor cost and free the human being operator,

make the life easier and more enjoyable.
