Electrical MotorPolyester Film Slot Cell Insulation Forming Stator
Paper Cuffing Creasing And Cutting
(1) Application

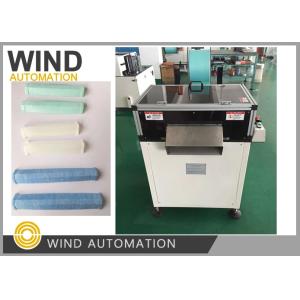

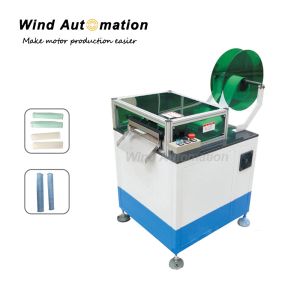

This slot cell forming machine WIND-150-IF stator insulation paper
cuffing creasing and cutting machine
form and cut the insulation paper for induction motor cell
insulation such as pump,ceiling fan,
compressor,hood motors.
(2) Parameter
Feeding length: adjustable
Cutting width <150mm
Cutting thickness < 0.35mm
Edge folded width 2.5mm~4mm
Weight: around 150KGS
Dimension: 500*900*1200mm
(3) Ask and Answer
1. if the machine only cut the insulation or can also bend the
insulations?
--- Yes, it can cut and also bend the insulations, the bend we call
it edge folded
2. What are the maximum and minimum width of the insulation?
--- Width of the insulation Min 10mm, Max 150mm
3. What is the thickness of the insulations?
--- 0.05mm to 0.35mm
4. What kind of material can bend and cut?
--- DMD,PMP and other Polyester film
5. Can we get variable paper size machines or different machines has
fixed paper size. Paper size for my application is between 1"to 3".
The machine can be set to cut types of paper sizes,
Please check part of the instruction for one customer who have many
types paper with and without edge fold,
https://vimeo.com/117535258
I enclosed a fresh video of insulation paper forming and cutting
machine for big size motor Shanghai WIND Automation build recently,
please check,
Wind Automation ship another paper forming and cutting machine in
April, 2016
I also enclosed the paper size range which our standard machine can
produce
6. Further I'd like to know the speed of the machine and the
technicality for serving the machine since I have to provide after
sales service here to our customers
The machine speed is adjustable, and the output quantity is related
to the paper size,
For example, cutting 50mm and 70mm will cost different time,
Usually machine can produce 1pc to 3pcs paper per second,
For after sales service, the warranty period is 13 month from date
of B/L,
We can send the part need to be placed and you bear the courier
cost,
And I have to tell you this machine have no history of problem in
customer place in the past 6 years,(question asked in the year
2015)
For example, the customer in Bangalore had used the machine for
over 3 years and the feedback was always perfect every year when we
do the survey,
Please click below photo to view video
